Cadmium Zinc Telluride (CZT) exhibits significant advantages when responding to
low-energy photons compared to other semiconductor materials. This capability is one of the reasons why CZT detectors are widely used in applications such as medical imaging, environmental monitoring, and homeland security, where low-energy photon detection is critical.
## Key Factors in CZT's Response to Low-Energy Photons
## 1. High Atomic Number (Z)
CZT, with its
high atomic number (Z)—particularly due to the presence of cadmium (Cd), zinc (Zn), and tellurium (Te)—makes it highly effective in interacting with low-energy photons. High Z elements like cadmium and tellurium increase the probability of photon interactions, especially for photoelectric absorption. This leads to enhanced X-ray and gamma-ray detection efficiency, particularly in the lower energy range (e.g., for X-rays from 20 keV to 150 keV).
* Photoelectric Effect: The high atomic number of CZT significantly boosts the likelihood of the photoelectric effect, which is crucial for detecting low-energy photons. This effect results in the complete absorption of the photon and the generation of electron-hole pairs in the crystal, enabling precise detection of low-energy X-rays and gamma-rays.
## 2. Wide Bandgap
CZT has a wide bandgap of around 1.5–1.7 eV, which is beneficial for its performance in radiation detection. A wide bandgap helps minimize thermal noise and dark current in detectors, especially at room temperature, which is essential for low-energy photon detection. The wide bandgap allows CZT to effectively separate the charge carriers generated by low-energy photons, leading to efficient signal collection with minimal thermal interference.
## 3. Low Threshold for Photon Detection
CZT detectors have relatively low threshold energies for detecting X-ray and gamma-ray photons, making them particularly useful for low-energy radiation detection. The low threshold allows CZT detectors to efficiently interact with and detect photons in the low-energy range, which would be challenging for materials with higher detection thresholds like silicon or germanium.
* Efficiency at Low Energies: CZT is particularly sensitive to lower-energy photons compared to materials like silicon and germanium. This is because silicon has a much smaller atomic number and a much higher threshold for photoelectric absorption. Additionally, germanium, although efficient at higher energies, is not as effective in detecting lower-energy photons as CZT due to its poorer performance in low-energy X-ray and gamma-ray absorption.
## 4. Charge Collection Efficiency
CZT detectors are well-known for their high charge collection efficiency, particularly for low-energy photons. The electron-hole pair generation is efficient due to the material's crystal structure and low defect density, which allows for effective charge transport even at the relatively low energies of low-energy photons. This characteristic enhances the energy resolution and sensitivity of CZT detectors at lower photon energies, enabling the detection of soft X-rays and low-energy gamma-rays with high accuracy.
## 5. Energy Resolution
CZT detectors have excellent energy resolution for low-energy photons, which is critical for differentiating between closely spaced energy peaks. This is particularly beneficial in medical imaging applications, such as X-ray imaging and mammography, where detecting low-energy photons with high accuracy can improve the quality of images and diagnostic precision. The sharp peaks in the energy spectrum produced by low-energy photon interactions enable the device to differentiate between various types of radiation more effectively.
## 6. Application in Medical Imaging

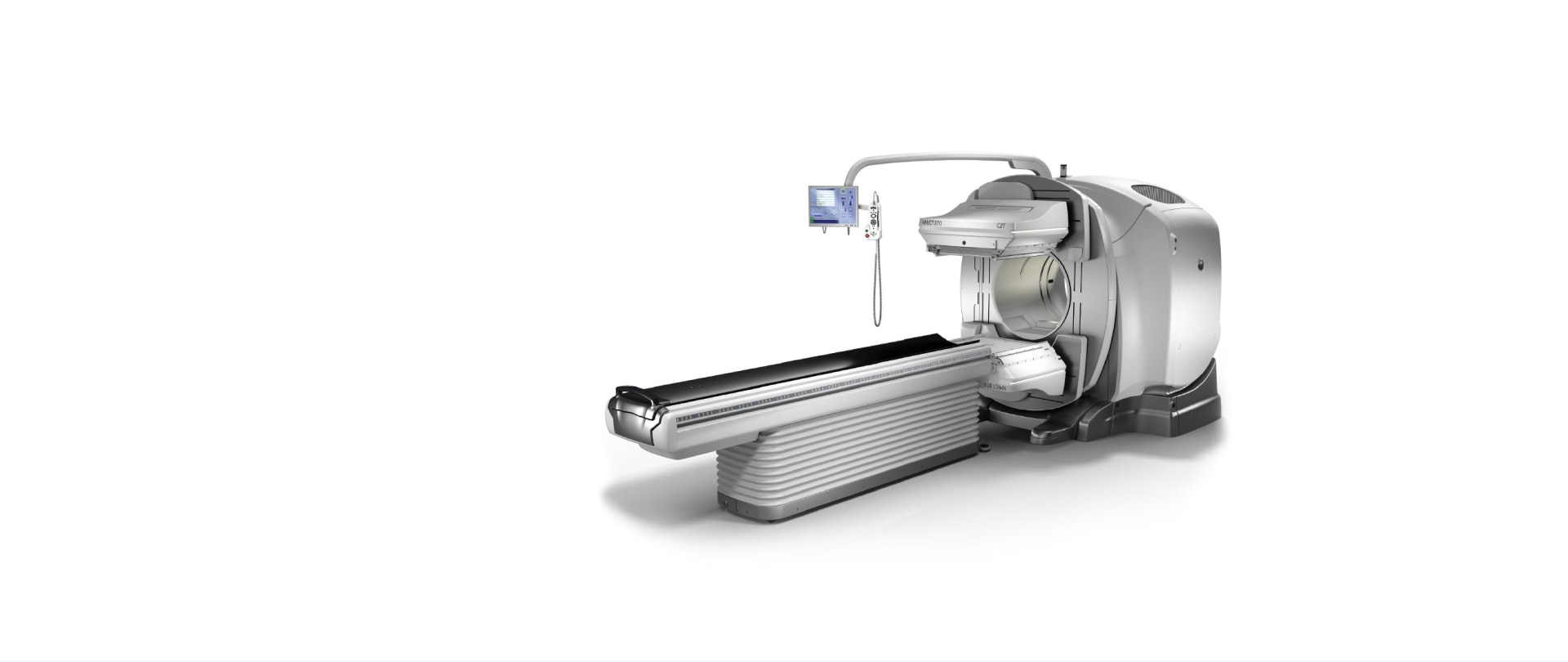

In medical imaging, especially in mammography and CT scans, the detection of low-energy photons is paramount. The ability of CZT to efficiently interact with soft X-rays and low-energy gamma-rays makes it a superior choice for these applications. The low-energy photon sensitivity allows for better image contrast and resolution in soft tissue, leading to improved diagnostic outcomes.
* Mammography: In breast cancer detection, CZT detectors are particularly useful in mammography, where the energy range of the X-rays used is typically in the 20–30 keV range. CZT detectors' excellent low-energy photon response improves both the detection sensitivity and image quality.
## 7. Environmental and Security Monitoring
CZT detectors also perform well in environmental monitoring and homeland security applications, where low-energy photons are often encountered. For example, CZT detectors are used to detect radioactive contamination from radon gas or other low-energy gamma emitters, with their high efficiency in the low-energy spectrum helping identify even small amounts of contamination.
## Challenges in Detecting Low-Energy Photons
While CZT is highly efficient at detecting low-energy photons, there are still some challenges:
* Surface Effects: At very low photon energies, surface effects can become significant. The surface leakage current and charge collection efficiency at the surface can affect the performance of CZT detectors, potentially leading to signal loss or distorted energy spectra.

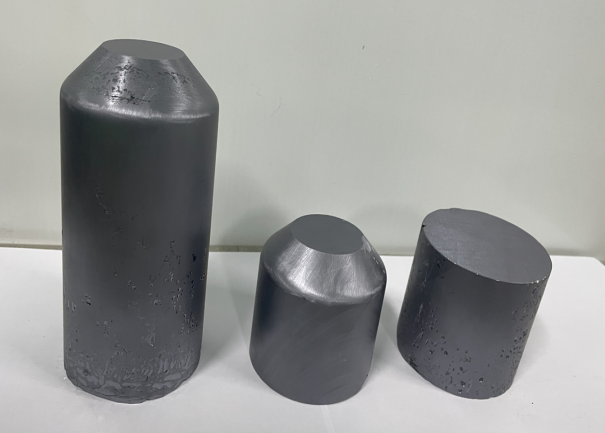

* Crystal Quality: The performance of CZT detectors, especially in low-energy photon detection, is highly dependent on the quality of the crystal. Defects or impurities in the crystal lattice can reduce the charge collection efficiency, thereby lowering the detector's overall performance in low-energy detection.
## Conclusion
CZT's high atomic number, wide bandgap, and excellent charge collection efficiency make it particularly effective for detecting low-energy photons. These properties enable CZT to excel in X-ray and gamma-ray detection, especially in applications requiring high energy resolution, such as medical imaging, environmental monitoring, and nuclear security. Its sensitivity to low-energy radiation makes it a preferred choice for applications where soft X-rays and low-energy gamma-rays need to be accurately measured. However, challenges such as surface effects and crystal quality must be addressed to fully optimize CZT's performance in low-energy photon detection.
